Sun Engineering offers a diverse vehicle lineup and unique company know-how to ensure safe and reliable Die-casting machine of customer’s valued assets
Sun Engineering has an extensive lineup of special-purpose vehicles for transporting super-heavy objects such as large-scale Die-casting machine or precision machine and devices such as laser processing machines that are sensitive to impact shocks. We make full use of our diverse range of vehicles and unique know-how to ensure safe and reliable transportation of our customer’s important and valued assets.
Forklifts
20t Forklift
Features
Transportable by trailer, and able to enter factories with low entrances
The forklift has a cut-off mast (height: 2,800mm) that enables it to be transported on a trailer and to enter factories with low-clearance entrances.
The cut-off process is performed by the manufacturer prior to the delivery of the vehicle when new, so there are also no issues in terms of compliance.
The forklift before fitting of green puncture-proof tires

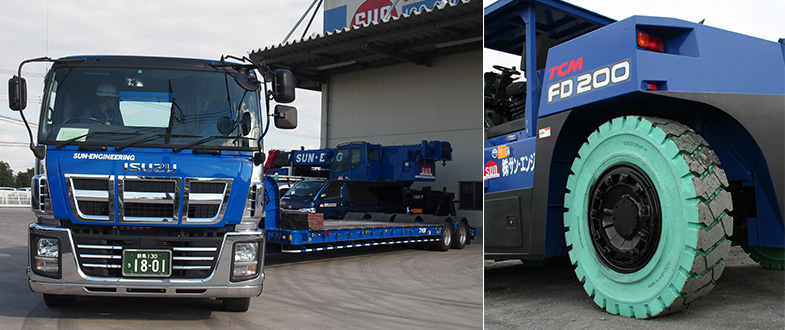

Fitted with green puncture-proof tires
The forklift is fitted with green puncture-proof tires to avoid dirtying customer’s floors during operation. Green tires of this size are very rare and are ordered specially for this purpose.
*The forklift fitted with green puncture-proof tires
Length of platform (dipped midsection) adjustable to between 5.5-12.5m
The platform section of the trailer can be extended/shortened and reconfigured, enabling the length of it to be adjusted to match the height and length of the cargo being transported; and making it possible to transport cargo as it is, in one piece, without the need for dismantling.
The platform section can be extended/shortened and reconfigured
Steering functionality enables entry to narrow spaces
Ordinarily, the long overall length of the trailer would make it difficult to enter narrow places. However, having steerable rear wheels makes it possible for this trailer to enter even places where ordinary trailers cannot.
Steering: the trailer’s rear wheels during steering
Hydraulic suspension enables vertical movement of the platform section
Due to the trailer’s low-floored platform, on bumpy or uneven road surfaces (such as at railroad crossings and sloped entrances), the platform is raised to prevent wear to its underside. By contrast, where carrying tall cargo, the platform is lowered when entering buildings in order to prevent contact or collision with entrance shutters, etc.
The trailer while driving
Specifications
Length
2,990mm
Maximum loading weight
60.3ｔ
Length of dipped midsection
Adjustable to between 5,500-12,500mm (12.5m)
Height of platform Adjustable to between
300-800mm
Steering angle
13 degrees (both neck-linked and manual steering are possible)
2-Axle 8-Wheel Full Air Suspension Low Platform Trailer (Steering: Steering system)
Features
Length of platform (dipped midsection) adjustable to between 6.1-11m
The platform section of the trailer can be extended/shortened and reconfigured, enabling the length of it to be adjusted to match the height and length of the cargo being transported; and making it possible to transport cargo as it is, in one piece, without the need for dismantling.
The platform section can be extended/shortened and reconfigured
Steering functionality enables entry to narrow spaces
Ordinarily, the long overall length of the trailer would make it difficult to enter narrow places. However, having steerable rear wheels makes it possible for this trailer to enter even places where ordinary trailers cannot.
Steering: the trailer’s rear wheels during steering
Full air suspension further reduces shocks to cargo
The trailer’s full air suspension protects machinery and devices such as laser processing machines, precision semiconductor machines and inspection instruments that are sensitive to impact shocks during transit and ensures that they are transported with the utmost care.
Full air suspension
Specifications
Length
2,990mm
Maximum loading weight
32ｔ
Length of dipped midsection
Adjustable to between 6,100-11,000mm (11m)
Height of platform Adjustable to between
380～600mm
Steering angle
25 degrees (both neck-linked and manual steering are possible)
3-Axle 12-Wheel Full Air Suspension Low Platform Trailer
Features
Length of platform (dipped midsection) adjustable to between 7.0-11.5m
The platform section of the trailer can be extended/shortened and reconfigured, enabling the length of it to be adjusted to match the height and length of the cargo being transported; and making it possible to transport cargo as it is, in one piece, without the need for dismantling.
Trailer with its platform extended
Steering functionality enables entry to narrow spaces
Ordinarily, the long overall length of the trailer would make it difficult to enter narrow places. However, having steerable rear wheels makes it possible for this trailer to enter even places where ordinary trailers cannot.
The trailer’s rear wheels are steerable
Full air suspension further reduces shocks to cargo
The trailer’s full air suspension protects machinery and devices such as laser processing machines, precision semiconductor machines and inspection instruments that are sensitive to impact shocks during transit and ensures that they are transported with the utmost care.
Perfect for transporting long cargo and heavy machinery
Unlike low platform trailers, the loading platform of this trailer is flat, enabling transportation of long objects and stable loading of heavy machinery such as large forklifts. Additionally, because the weight of the trailer has been reduced this specification also makes for easier permit applications.
The trailer’s flat loading platform
Specifications
Length
2,990mm
Maximum loading weight
41.3ｔ
Length of dipped midsection
6,900mm
Height of platform
700mm
Steering angle
None
About on-road permit applications for special vehicles
For large trailers to be driven on public roads, it is always necessary to apply for and obtain an on-road permit from the road manager. (The trailers cannot be operated without a permit.) Factors such as weight, axle load, width, height and length all play a part in the permit application process, and depending on the vehicle there are cases in which permits may be denied, even for the same cargo. Sun Engineering is constantly working to promote and ensure thorough compliance and all of the vehicles introduced here have been designed with the premise of obtaining on-road permission in mind.
